Fiio KA3 DAC/AMP
Original price was: $95.14.$66.60Current price is: $66.60.
- Online assistance, always at your service.
- Free 1 year warranty period
- Expertly Sourced, Quality Guaranteed
- Multiple payment methods, 100% payment security
- DAC chip: E59038Q2M
- Input port: Type-C USB
- Output port: 3.5mm single-ended, 4.4mm balanced
- Output power: 130mW@32R(PO), 240mW@32R(BAL)
- Noise floor: 3.94V/4.2uV(PO), 4.4uV/4.30V(BAL)
- Decoding: Supports up to PCM 32bit/ 768kHz DSD512
- Color: Black (Black main body, gold ends)
- Weight: About 17.5g
- Accessories: KA3*1, Type-C to Type-C cable*1, Type-C to USBA cable*1, User manual*1
FIIO / JADE AUDIO KA3
SMALL USB DAC AND AMPLIFIER
Optimized HiFi audio architecture | Independent flagship DAC
32Bit/768kHz DSD512 robust capacity | 3.5+4.4 dual headphone outputs
CREATING A BETTER HEADPHONE JACK IN THEIR ABSENCE
With most phones now foregoing a headphone jack, we felt compelled to create a headphone jack to truly bring back great sound.
TREMENDOUS PERFORMANCE IN A SLIM PACKAGE
Within the KA3’s petite frame lies exceptional hardware.
OPTIMIZED AND ENHANCED HIFI AUDIO ARCHITECTURE
Experience uncompromised audio quality with a carefully engineered multi-chip audio circuit.
HIGH-PERFORMANCE FLAGSHIP DAC
Potently robust Dual headphone outputs
Comes equipped with 2 headphone outputs, both powerful to easily drive a variety of headphones.
32BIT/768KHZ | DSD512
LOW NOISE FLOOR CLEAN SOUND FOR A GREAT SOUND
Featuring abundant power with high signal-to-noise ratio, low distortion, and almost 0 noise – this is true high-fidelity sound.
>122DB SNR
<0.0008% THD+N
<1.7UV Noise
HAVE IT ALL DUAL SE AND BALANCED OUTPUTS
Satisfy multiple use cases with both a 3.5mm single-ended and a 4.4mm balanced output.
WONDERFULLY VERSATILE ANYWHERE, ANYTIME
Compatible with various OSes like Android/iOS/Windows/Mac
Compatible with many devices like phones/tablets/computers/ audio players
Use in various scenarios like listening when commuting, in the home or office, or even gaming
*Due to the large output power of the KA3 and limited external power supply of iPhones, stutter and muteness may happen to the maximum volume.
* For Windows systems, please install the driver first.

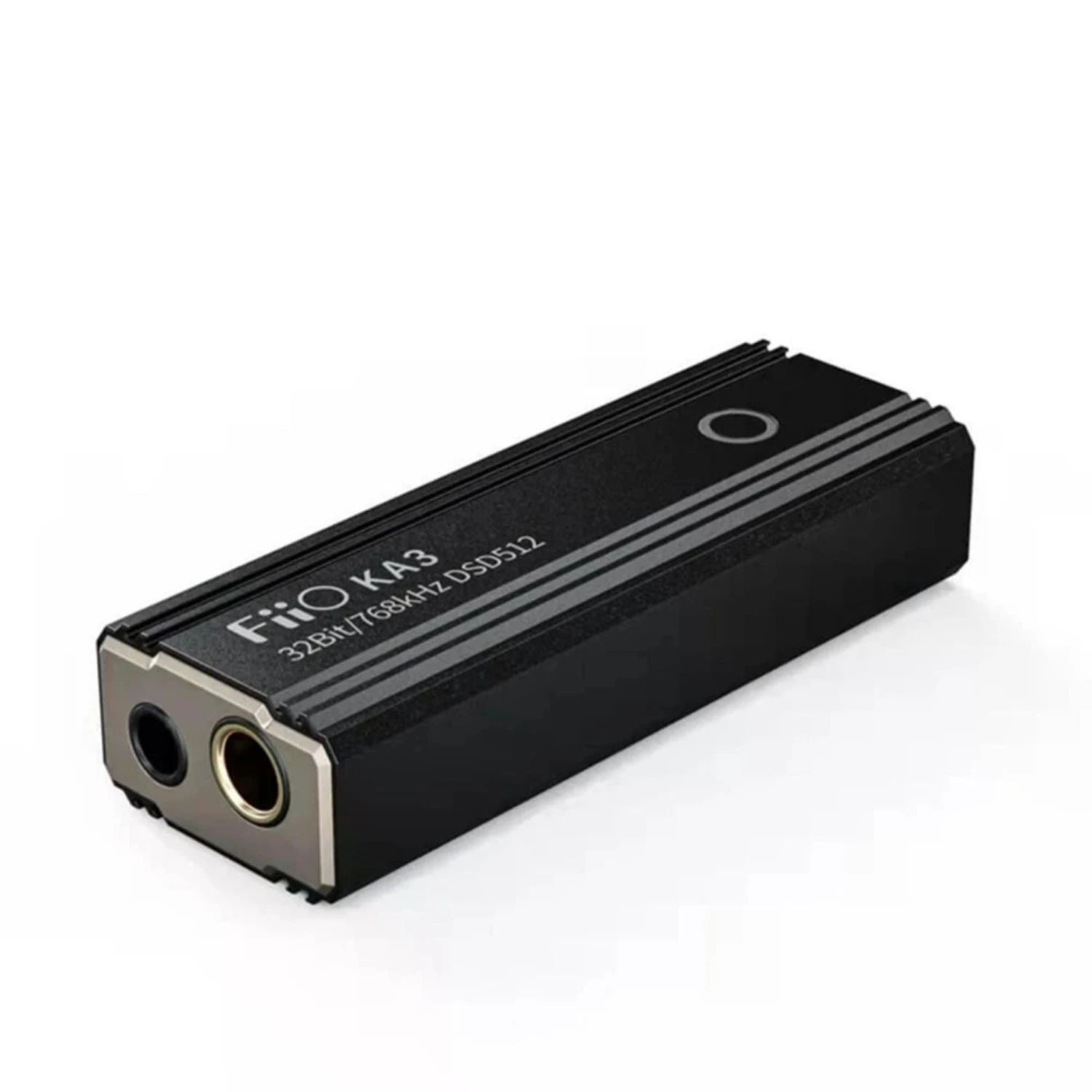

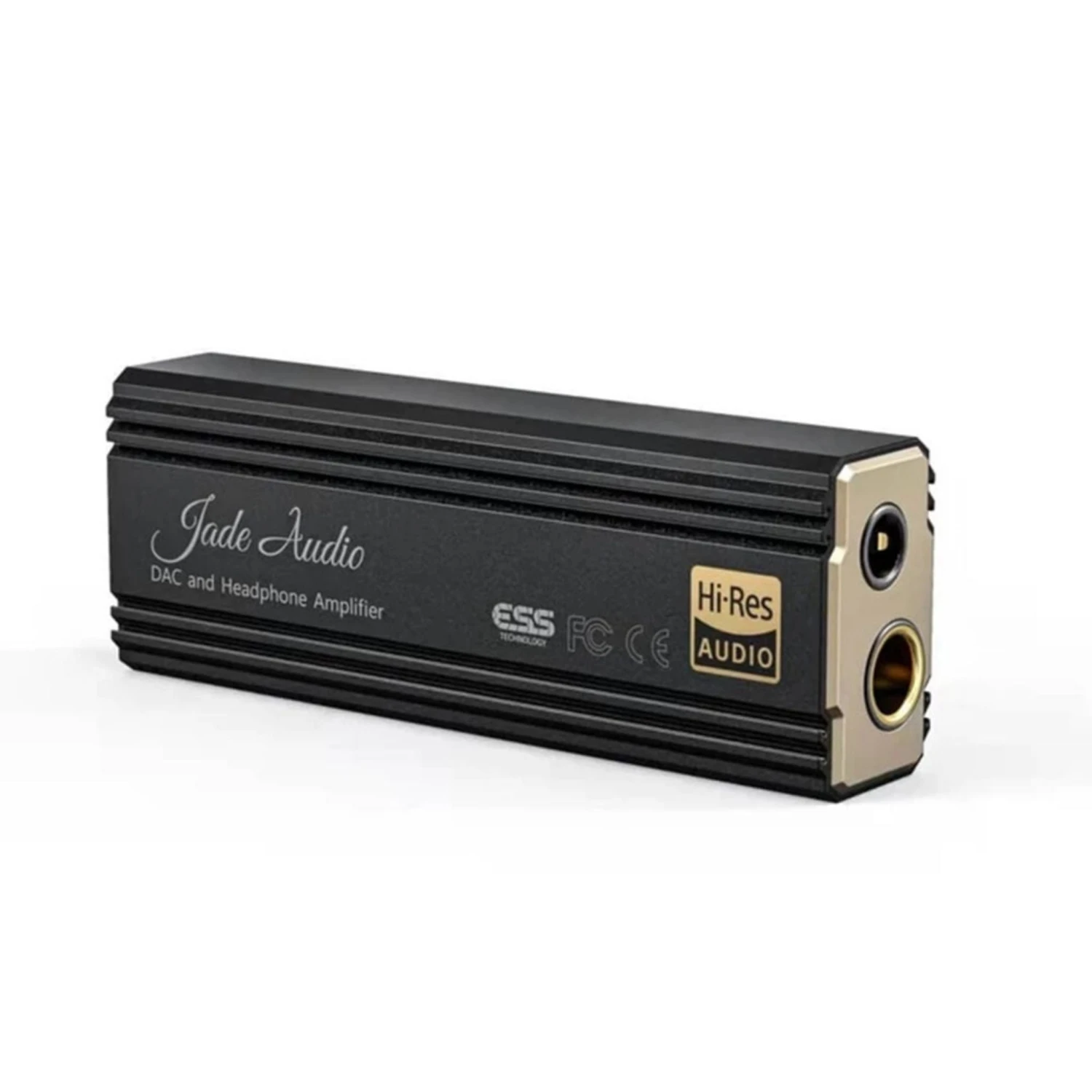

STUNNINGLY SUAVE ALL-METAL CONSTRUCTION
The all-metal body sports a handsomely rugged design with distinct edges and a luxurious gold and black finish.
PRACTICAL AND BEAUTIFUL RGB TOUCH
Besides exuding elegance, the RGB light indicator usefully indicates the current sampling rate.
blue – 48kHz and below sampling rate
yellow – 48kHz and above sampling rate
green – DSD
EVEN MORE WAYS TO INTERACT
Unleash the KA3’s potential with more interactivity in a control app including controls for 7 kinds of filters, high and low gain, and channel balance adjustment.
Wonderfully versatile
Due to the large output power of the KA3 and limited external power supply of iPhones, stutter and muteness may happen to the maximum volume.
|
|
|
|
|---|---|---|
High-performance flagship DAC chipEquipped with the powerful and proven ESS ES9038Q2M, supporting 32bit/768kHz and DSD512. |
Low noise floor for a great soundFeaturing abundant power with high signal-to-noise ratio, low distortion, and almost 0 noise – this is true high-fidelity sound. S/N: 119dB THD+N: 0.0008% Noise: <4uV |
More specifications(1) Recommended headphone impedance: 16~300Ω(PO); 16~300Ω(BAL) (2) Audio input interface: USB Type C (3) Firmware upgrade: System firmware and Bluetooth version can be upgraded via USB (4) DSD: DSD64/128/256/512 (5) Color: Black |
SPECIFICATIONS | |||
| Name/Model | KA3 | Color | Black |
| hardware | DAC: ES9038Q2M | FiiO Control | support |
| weight | Approximately 17.5g | Size | About 56.3mm x 20.2mm x 12mm |
| Audio input interface | TypeC USB | Headset output interface | 3.5mm socket |
| Balancing output interface | 4.4mm socket | DSD | DSD64/128/256/512 |
| Firmware upgrade | System firmware and Bluetooth version can be upgraded via USB | Sampling rate indication | Blue ≤48kHz Yellow ＞48kHz Green ＝DSD |
| Channel balance | PO: <0.004dB(32Ω/THD+N<1%) BAL: <0.046dB(32Ω/THD+N<1%) | Recommended headphone impedance | 16~300Ω(PO) 16~300Ω(BAL) |
| Maximum supported sampling rate | 768KHz/32bit | ||
POWER SUPPLY PARAMETERS | |||
| Power supply | Battery capacity | N/A | |
AUDIO PARAMETERS | |||
| Single-ended line output performance parameters | |||
| Output power | 120mW (16Ω,THD+N<1%) | Output Level | 2V(32Ω/THD+N<1%) |
| 130mW (32Ω,THD+N<1%) | Crosstalk | ≥ 76dB(1Khz,32 Ω load) | |
| 14mW (300Ω,THD+N<1%) | ≥ 118dB(1Khz, no-load) | ||
| 7mW (600Ω,THD+N<1%) | Output impedance | <0.5 Ω (load 32 Ω) | |
| Frequency response | 20Hz to 20KHz, the curve amplitude changes by 0.2dB. | SNR | ≥ 122dB(32 Ω A) |
| 20Hz to 50KHz, and the curve amplitude varies by-1dB. | THD+N | <0.0008% | |
| Noise floor | ＜1.7uV（dbA） | ||
| Balanced line output performance parameters | |||
| Output power | 120mW (16Ω,THD+N<1%) | Output Level | 2.7V(32Ω/THD+N<1%) |
| 240mW (32Ω,THD+N<1%) | Crosstalk | ≥ 106dB(1Khz,32 Ω load) | |
| 56mW (300Ω,THD+N<1%) | ≥ 115dB(1Khz, no-load) | ||
| 28mW (600Ω,THD+N<1%) | Output impedance | <0.7 Ω (load 32 Ω) | |
| Frequency response | 20Hz to 20KHz, the curve amplitude changes by 0.2dB. | Noise floor | <2.9uV(A calculation) |
| 20Hz to 50KHz, and the curve amplitude varies by-1dB. | THD+N | <0.0010% | |
| SNR | ≥ 119dB(32 Ω A) | ||
