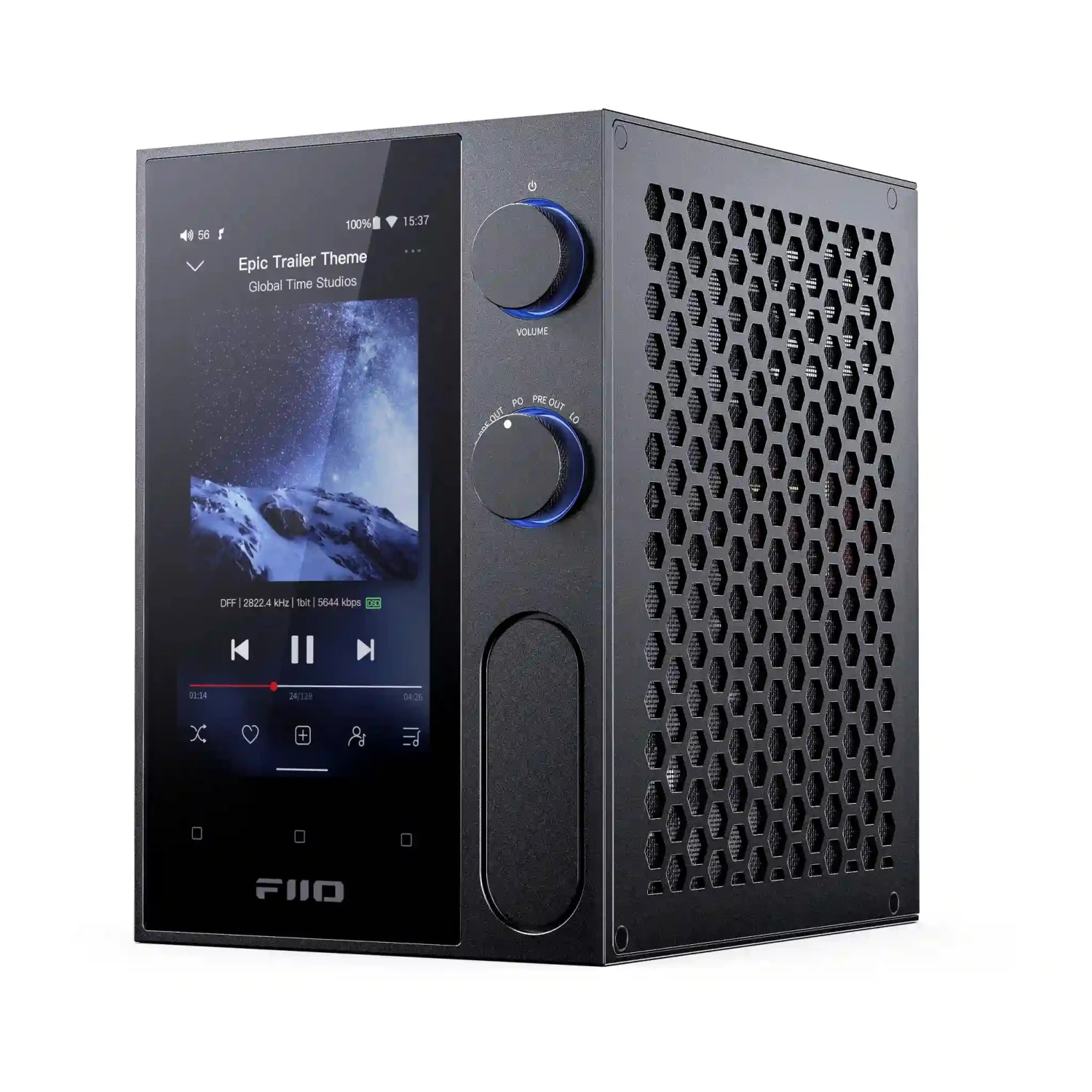

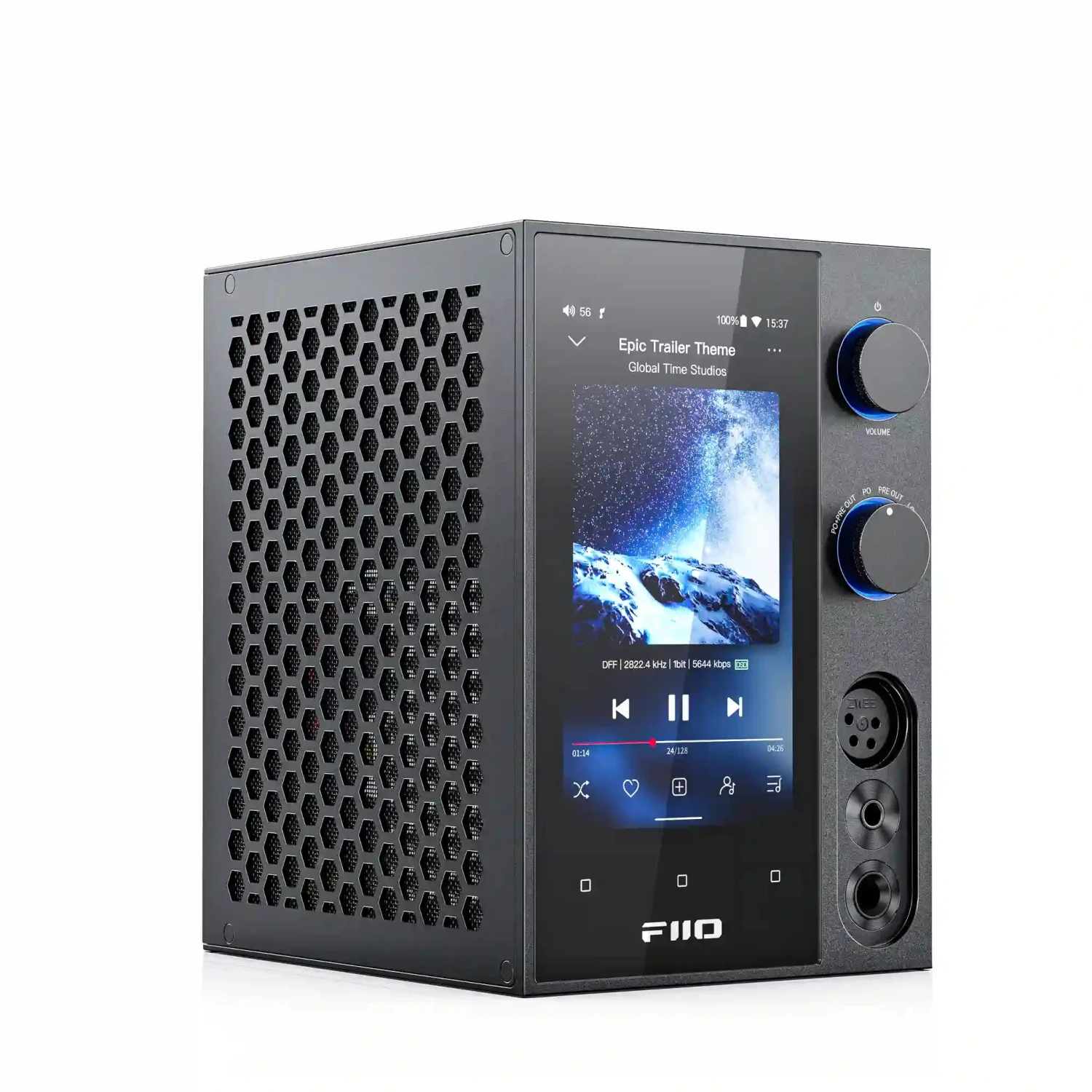

FiiO R7 Music Player

 Features

• Full range of inputs and outputs | Four output modes | Eight operating modes including Roon Ready
• DC/AC dual power supply design | ES9068AS+THX AAA 788+*2 design | Five gain levels
• 3W output power | Portrait media streaming design | Snapdragon 660+Android 10 | Customizable RGB lights
• Ethernet port | Personalized screensaver | Exclusive DP mode | Dual USB ports

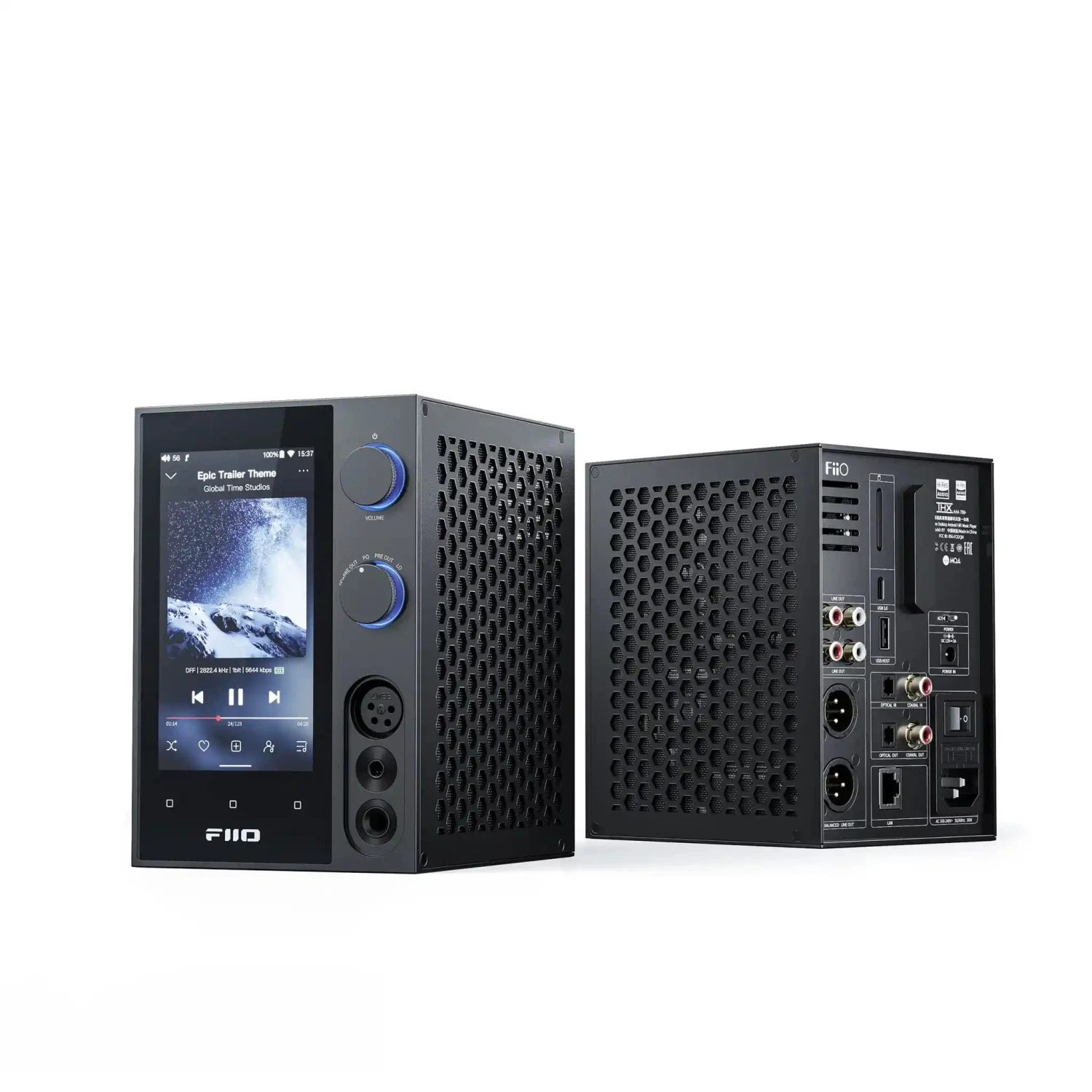

Full range of inputs and outputs

The R7 features connectivity far beyond what one would expect from it, helping you to quickly and easily build a desktop HiFi system with the R7 as the heart of it.

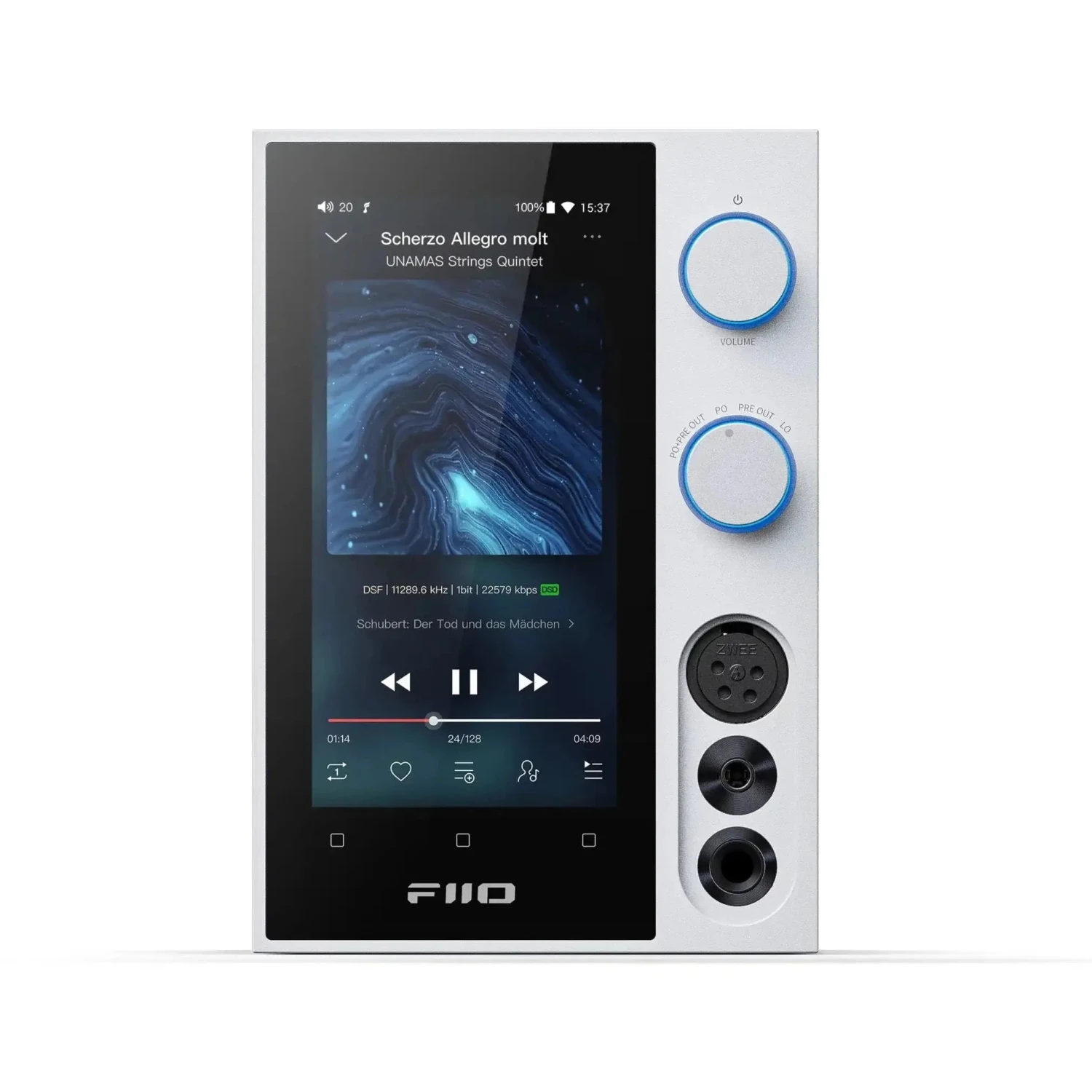

Front:

6.35mm headphone output

4.4mm balanced headphone output

Four-pin XLR balanced headphone output

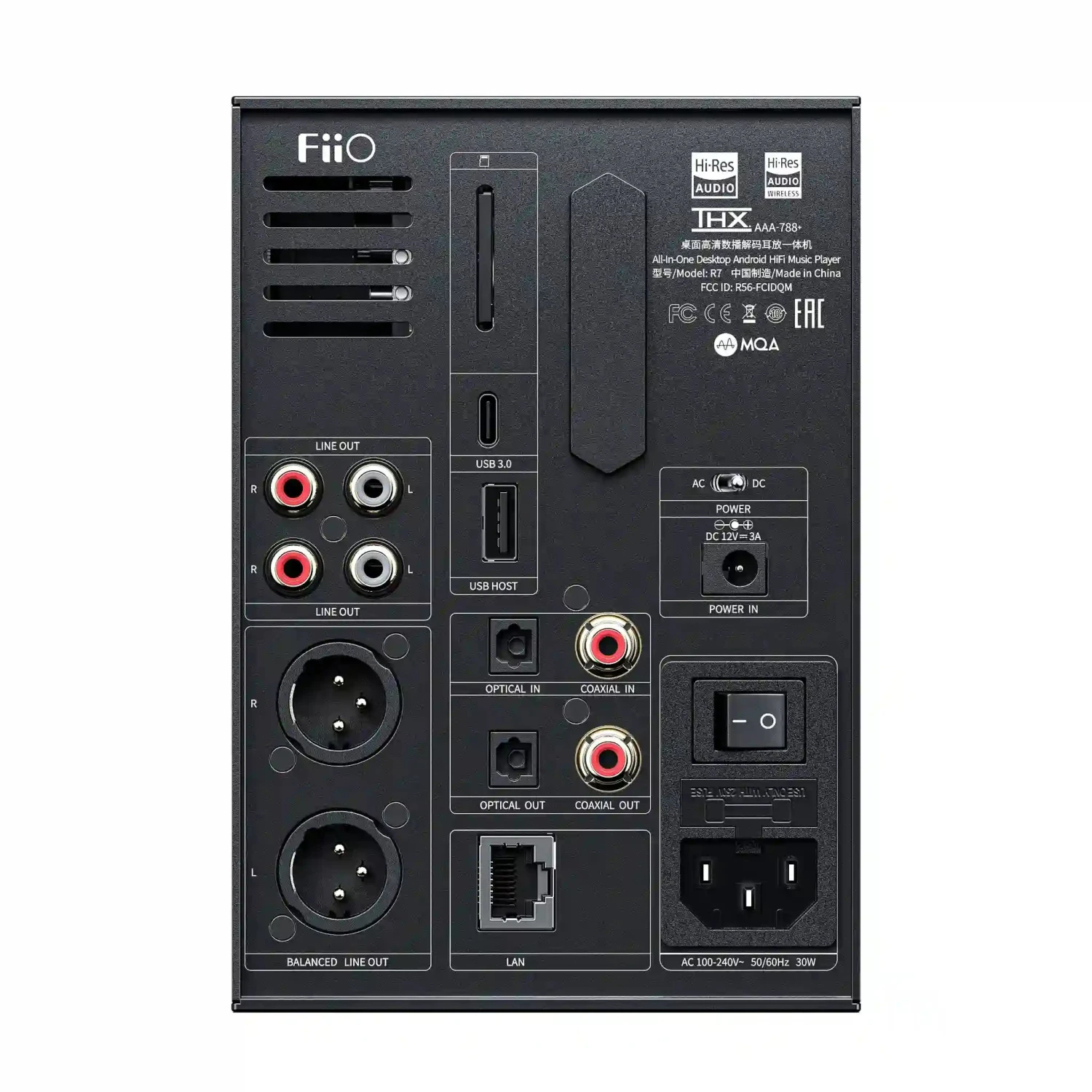

Rear:

RCA line out*2

Three-pin XLR balanced line out

Coaxial output

Coaxial input

Optical output

Optical input

Ethernet: for wired connection to a network

USB HOST interface: supports external USB devices such as external decoders/hard disks/keyboards/expansion hubs

Type-C port (USB 3.0): supports data transfer, DP output mode, USB DAC, and USB HOST related functions

Micro-SD card slots: Stored in a micro-SD card holder, supporting up to 2TB micro-SD cards

AC/DC power switch

DC power input: external DC power supply, 12V-3A

AC power output: AC power used by default, compatible with 100~240V

AC power on/off switch

WiFi/Bluetooth antenna



Many outputs

No need to plug and unplug cables, as you can conveniently switch between the PO/LO/PRE OUT/PO+PRE OUT outputs simply by turning a knob.

PO: Only front audio outputs are active

LO: Only rear audio outputs are active (fixed at max output)

PRE OUT: Only rear audio outputs are active (adjustable volume)

PO+PRE OUT (default): both front audio outputs + rear audio outputs (adjustable volume) are active



Multiple modes

Android mode: Enjoy third-party apps, such as major streaming services;

Pure music mode: Exclusive FiiO pure music mode, for even more immersive music;

USB DAC mode: Greatly improve the sound of any computer/phone by connecting to them as a decoder;

Bluetooth receiver mode: Supports LDAC/SBC/AAC, making it easy to listen to excellent sound;

AirPlay receiver mode: Wirelessly connect iPhone/iPad and other iOS devices, giving them a huge boost in sound quality;

Roon Ready mode: Roon Ready certified, giving you an ergonomic player in seconds;

Coaxial/optical decoding mode: By being able to receive optical/coaxial signals, the R7 turns into a high-performance decoder



Remote control

Want to listen to your music without having to get up? You can go with the FiiO Music app or a Bluetooth remote control, allowing you to control your music from a distance and conveniently handle various operations with ease. Be truly unshackled when listening.

*In the future, FiiO will launch a customizable universal Bluetooth remote control.

Specifications

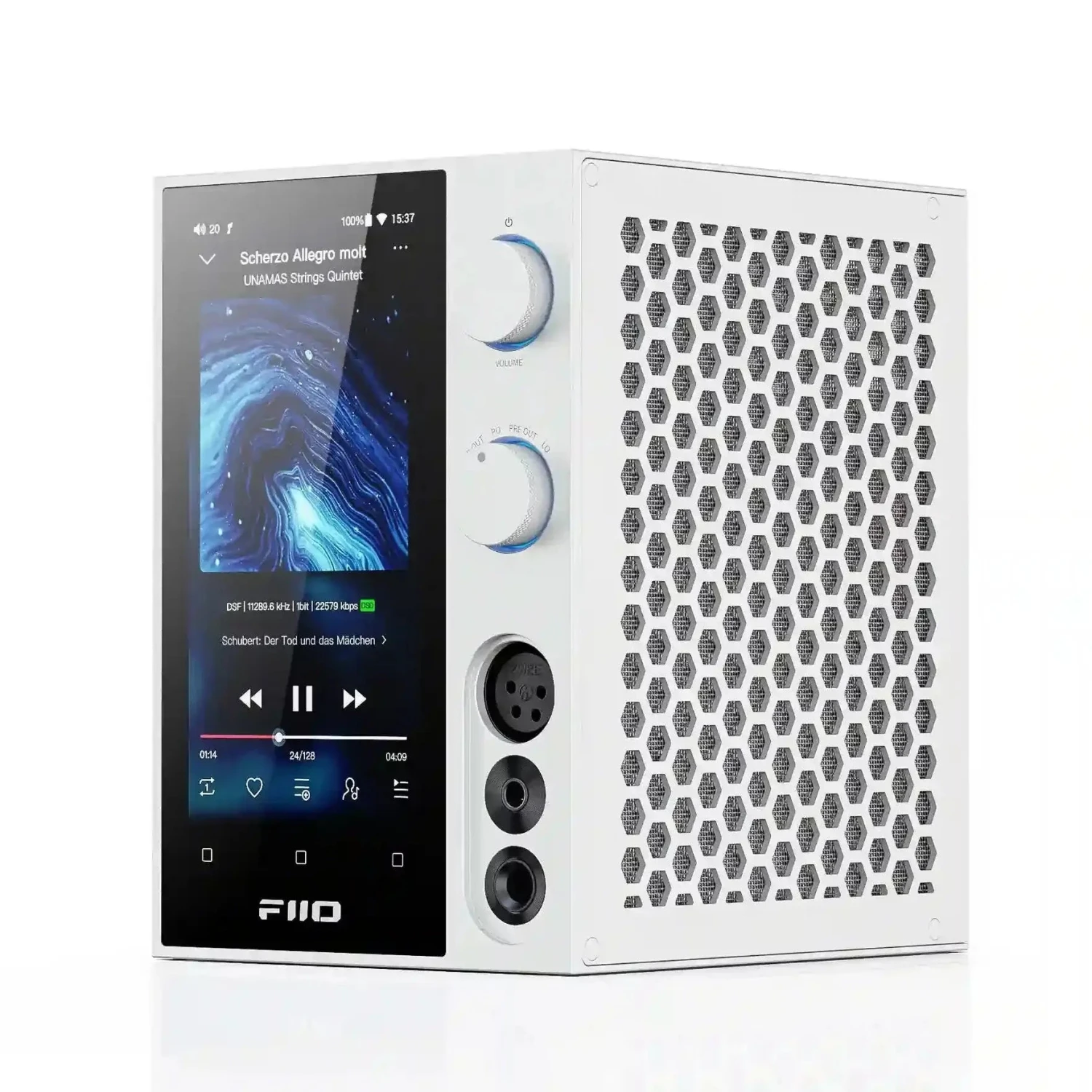

• Color: Black/white (white version expected to launch around March 2023)
• SoC: Snapdragon 660
• DAC: ES9068AS
• Amplifier: THX AAA 788+ *2
• Supported audio formats: 384kHz-32bit PCM, DSD256
• USB connectors: Type-C USB3.0, USB-A
• Display: 5.0-inch minimal bezel FHD+ high-definition display
• Output power 1: 3000mW (32Ω/balanced/enhanced over-ear headphone mode)
• Output power 2: 630mW (300Ω/balanced/enhanced over-ear headphone mode)
• Frequency response: 20Hz~90kHz (-3dB)
• SNR: ≥122dB (A-weighted)
• Noise floor: LO≤1.5μV (A-weighted); PO≤4μV (A-weighted); BAL LO≤2.4μV (A-weighted): BAL≤5.5μV (A-weighted)
• Output impedance: ＜1Ω (32Ω load)
• THD+N: ≤0.0004% (1kHz/32kΩ)
• Dimensions: 110*160*134mm
• Weight: 1.3kg
