The Saramonic UwMic9 Kit1 UHF Wireless Lavalier Microphone System provides stable, interference free audio in portable, compact and low cost package. This system is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, ENG, providing dependable audio broadcasting and recording.

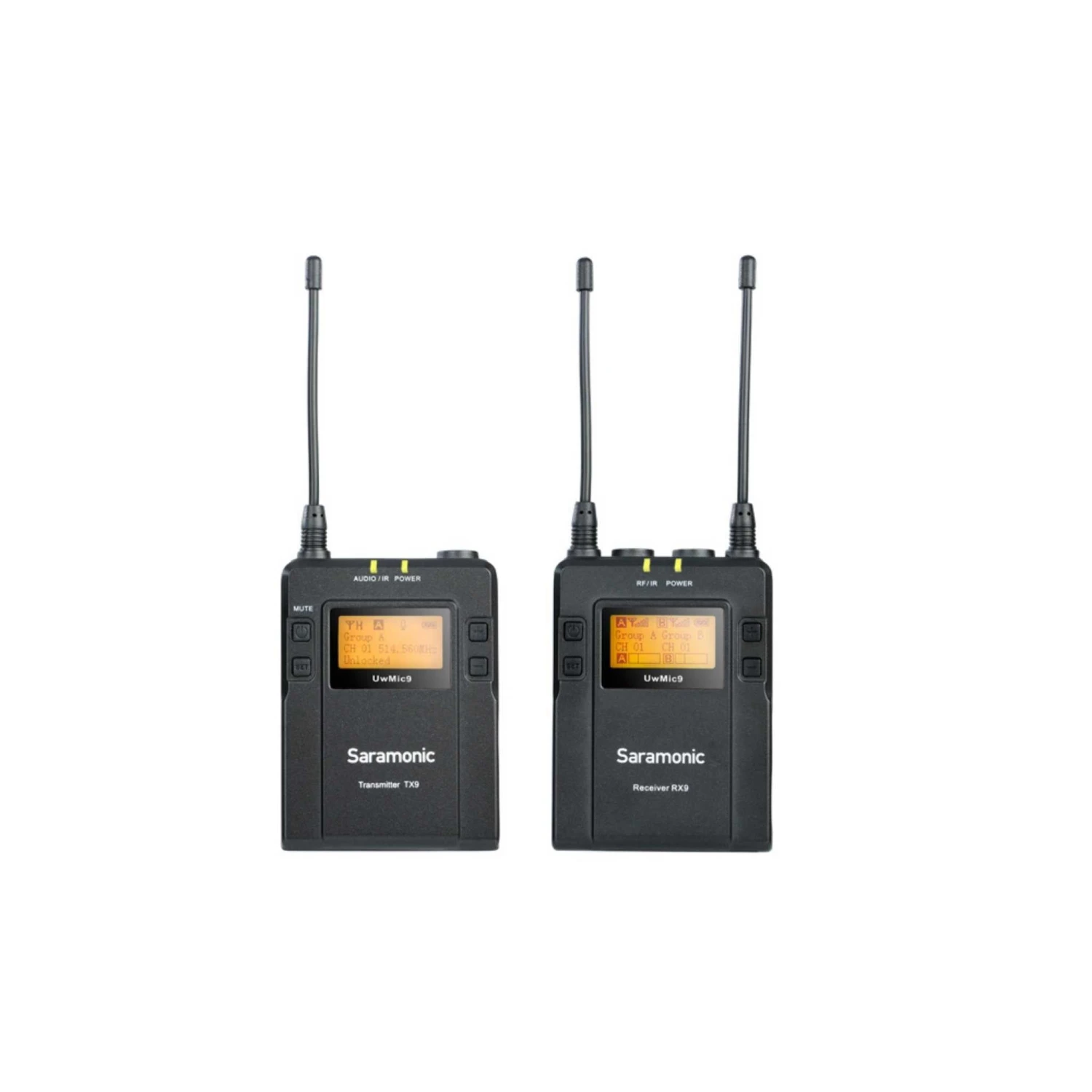

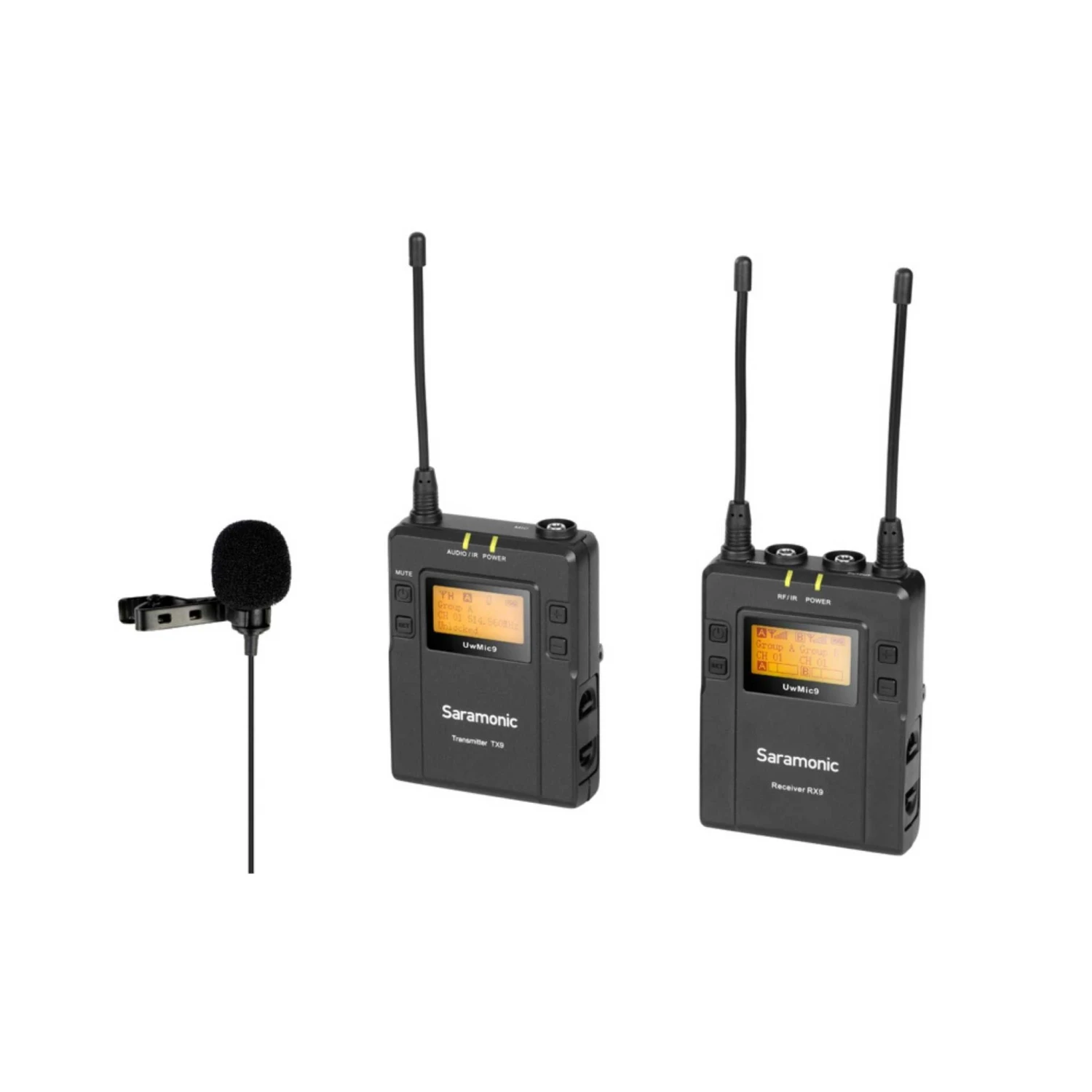

The system includes a camera-mountable wireless receiver, a wireless body-pack transmitter and clip-on lavalier mic.

Receiver (x1)

The Saramonic UwMic9 RX9 is a camera-mountable integrated wireless receiver. It features a wide switching RF bandwidth, an easy-to-read LCD display and infrared synchronization between transmitter and receiver.

Equipped with an auto-scan function, the RX9 can automatically search for an available transmission frequency. The headphone jack enables real-time monitoring or the receiver via headphones, especially useful for cameras that lack a monitor output.

Transmitter (x1)

This compact transmitter UwMic9 TX9 employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP-type mic input. The RF power output can be switched among high, middle and low.



• Reliable, broadcast-quality audio
• Wireless transmitter with lavalier microphone
• 514 MHz – 596 MHz
• 96 selectable channels in 2 groups
• Headphone monitoring
• Easy-to-read LCD displays
• Over 330-feet (100m) in open areas or 200-feet (60m) with obstacles
• Optional handheld and XLR transmitter for different applications.



Transmitter

Channels:	96
Groups:	A or B
Oscillator Type:	PLL Synthesizer
Frequency Range:	514 MHz – 596 MHz
Reference Deviation:	+/- 5 kHz (-60dBV, 1kHz input)
Signal to Noise Ratio:	70 dB or more
Spur Suppression:	-60 dB
Voice Delay:	12 ms
Antenna:	1/4λ wire antenna
Audio input connector:	TX9:3.5mm mini jack   HU9: none TX-XLR9: XLR-3-11C type (female)
Reference audio input level:	-60dBV (MIC input, 0dB attenuation)
Distortion:	0.5% or less
Weight:	TX9: Approx. 211.4g (excluding batteries)   HU9: Approx. 338.2g (excluding batteries) TX-XLR9: Approx. 138g (Excluding batteries)
Battery:	Two AA size batteries
Dimensions:	TX9: 170.9 x 63.5 x 30.0 mm HU9: 254.0 x 52.0 x 52.0 mm TX-XLR9: 105.5 x 43 x 34.7 mm
Operating temperature:	0℃ to 50℃
Storage temperature:	-20℃ to +55℃

Receiver

Channels:	96
Groups:	A or B
Oscillator Type:	PLL Synthesizer
Audio output connector:	3.5mm mini jack
Antenna:	1/4λ wire antenna
Audio output level:	-60dBV
Headphone output level:	30mW (16Ω)
Receiver frequencies:	514 MHz – 596 MHz
Signal to Noise Ratio:	70 dB or more
Voice Delay:	12 ms
Reference Deviation:	+/- 5 kHz (-60dBV, 1kHz input)
Frequency response:	40Hz to 18kHz (+/-3dB)
Distortion:	0.5% or less
Spur Suppression:	-60 dB
Weight:	218.7g (Excluding batteries)
Battery:	Two AA size batteries
Dimensions:	170.9 x 63.5 x 30.0 mm
Operating temperature:	0℃ to 50℃
Storage temperature:	-20℃ to +55℃
